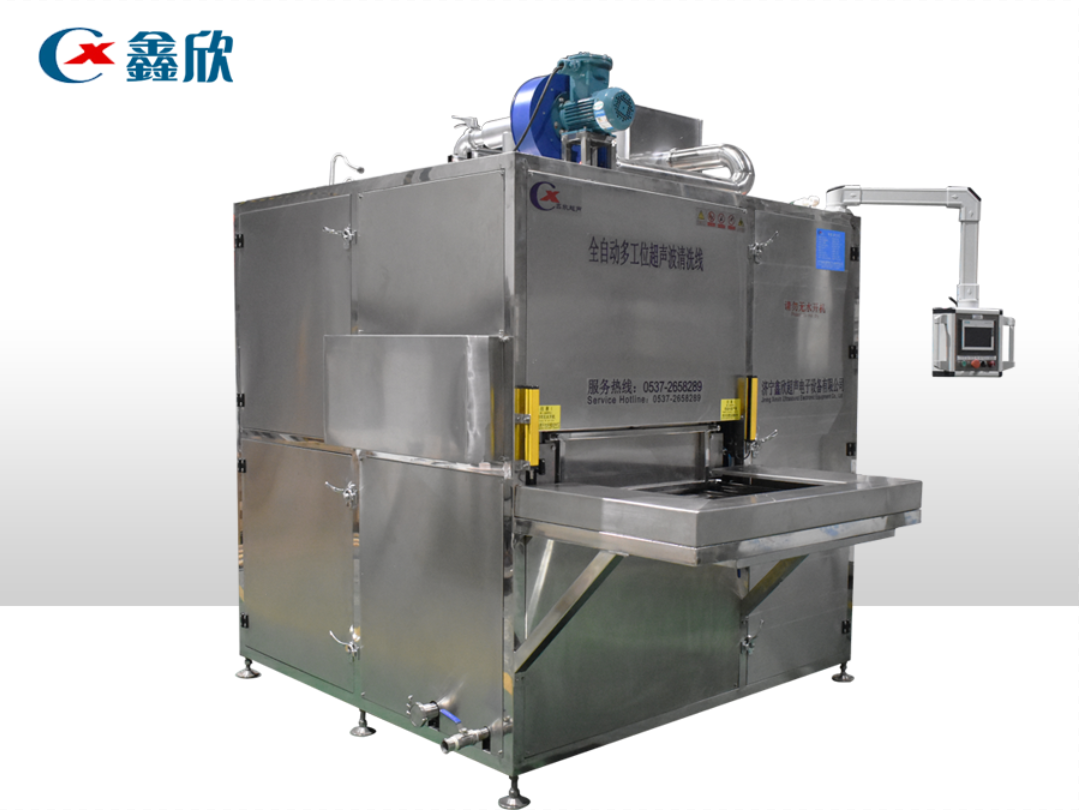

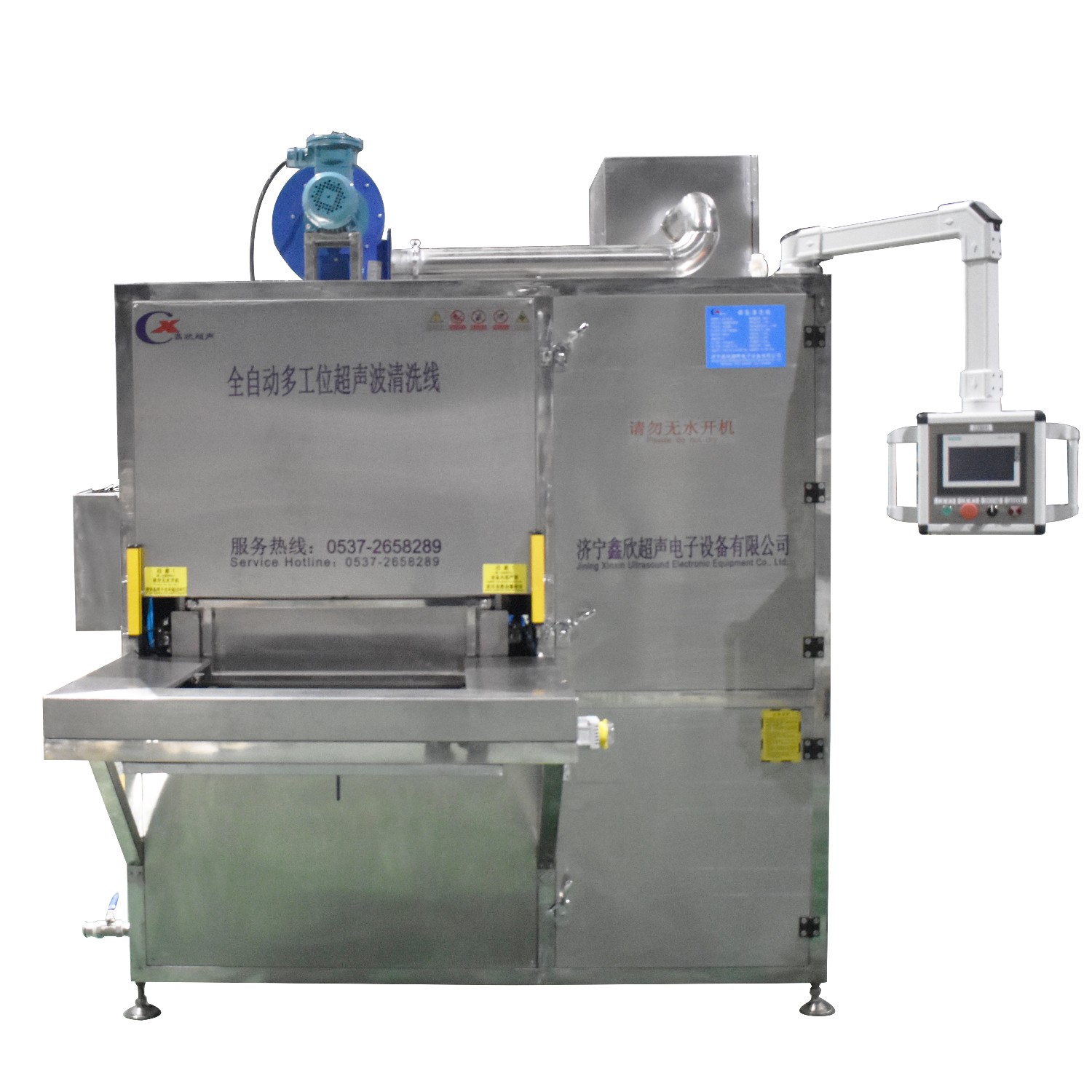

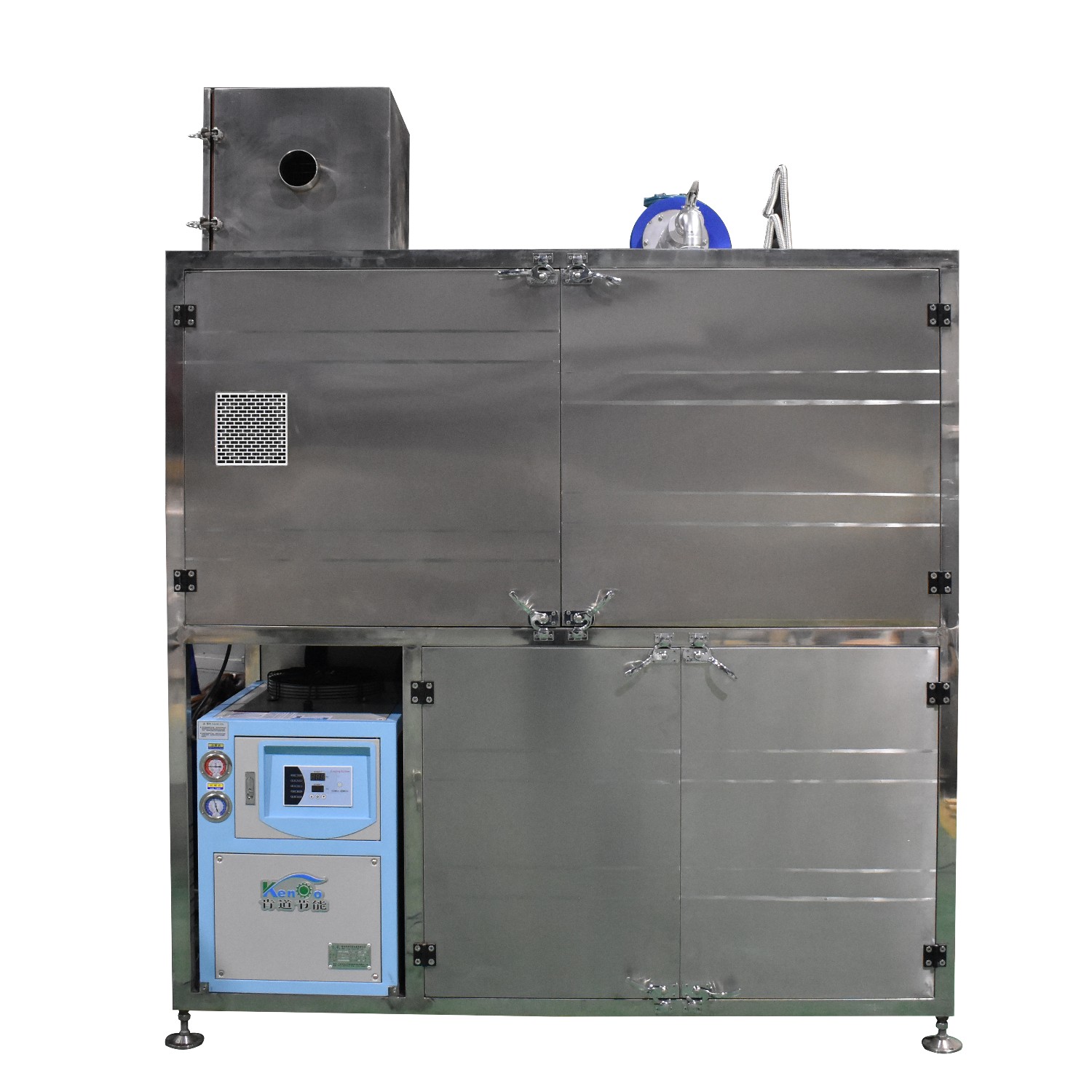

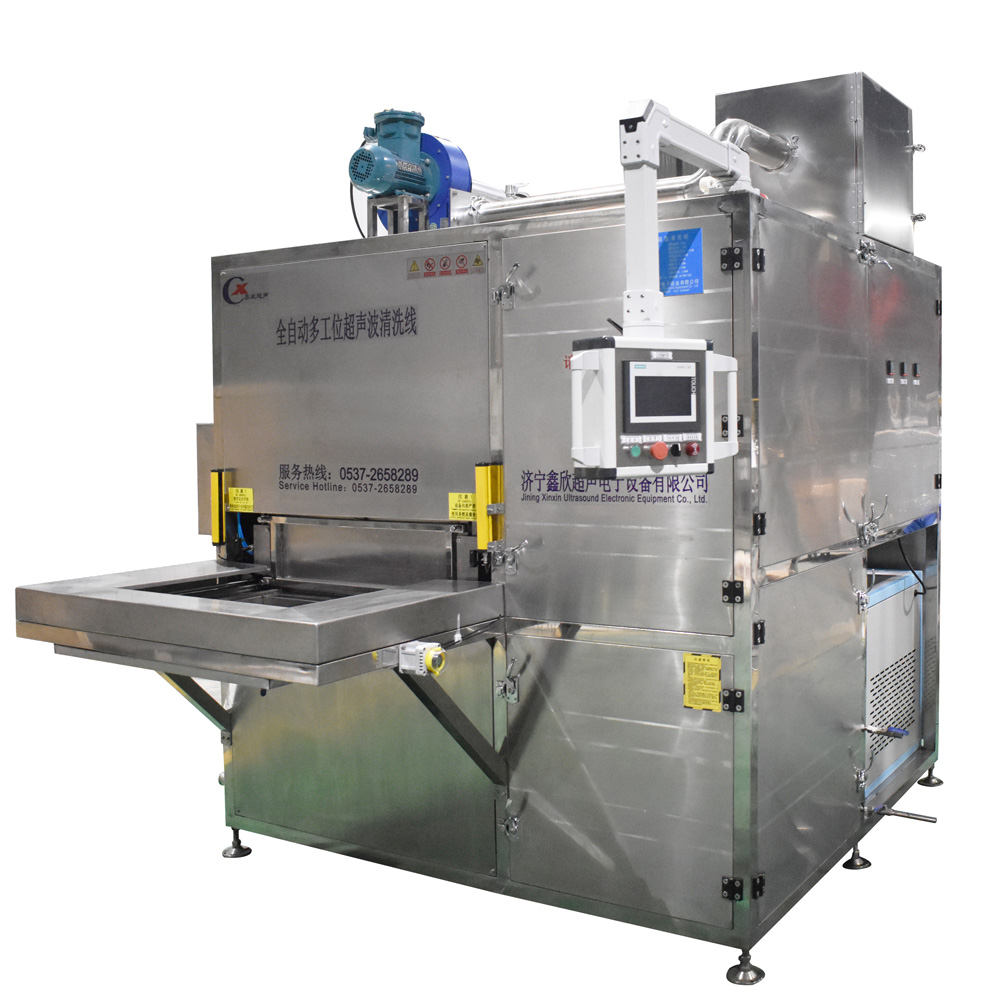

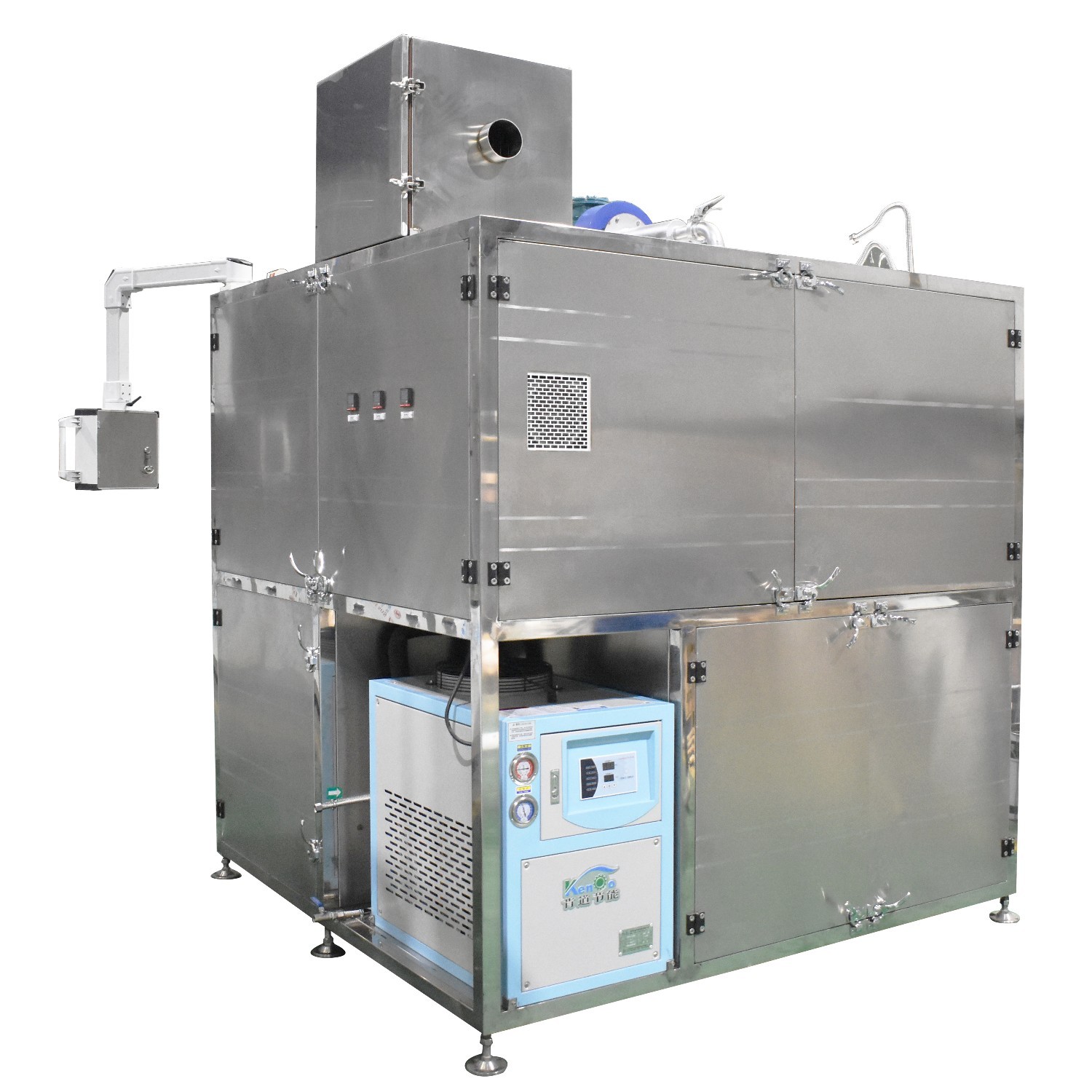

This device is a high cleanliness cleaning machine that uses hydrocarbon ultrasonic cleaning technology. The equipment consists of ultrasonic cleaning station, spray cleaning station, cleaning mesh frame, cleaning condensation area, water separator, industrial chiller, solvent recovery machine, pipeline system, intelligent control system, etc.

Process flow: (01) Place the mesh frame containing the workpiece on the loading and unloading workbench, and the workbench automatically transports the workpiece to the lifting platform. The lifting platform drives the workpiece to descend, and the workpiece descends to the ultrasonic cleaning station for ultrasonic cleaning. → (02) Turn on ultrasonic cleaning, which uses an ultrasonic vibration plate structure and is placed at the bottom of the tank. After the ultrasonic cleaning is completed, the lifting platform rises above the solvent liquid and begins to spray clean the workpiece. During the spray cleaning, the workpiece is rinsed with a new hydrocarbon liquid. After the spray rinsing is completed, the material is lifted through the condensation area by the lifting platform and lifted to the upper and lower material workbench for manual material cutting.
